How to choose roller sublimation heat transfer machine
Release Date:09/01/2017
Thanks to disperse dye ink and localization of the transfer, the last two or three years, sublimation heat transfer printing (often called "thermal transfer") market is growing much faster than expected. While is market reduced brings needs of fast increased, on the is increasingly big of cost pressure: with domestic dispersed dye inkjet print ink and the digital hot turned printing paper of universal, digital hot transfer printing of cost has can reduced to each square meters 5 Yuan following (not containing fabric), finished fabric of sales price also in constantly lower, and artificial cost, and rent, is instead in increased, from integrated cost consider, most industry who will select more high of equipment investment for more low of operation cost.
Roller sublimation heat transfer machine with the important components for the system, it is another situation: most customers are buying imported brands of large format printers at the same time, selected as first,Dongguan HCM machinery and domestic brands such as heat transfer machines, and HCM printing machine to hit the high-end energy-efficient drum thermal transfer machine.Netherlands Klieverik drum used by the same principle. roller sublimation heat transfer machine cost? Through understanding, the market there is a common misconception for heat transfer machines.Sublimation digital printing production of close to 100,000 square meters of fabrics a month on average, monthly electricity spend seventy thousand or eighty thousand Yuan, it took me by surprise, which means energy consumption per square meter will be seven or eight cents, almost with ink costs. I carefully studied the HCM printing machinery in the heating mode, blanket-wrap angle, roll diameter and speed, starts and power differences, found that HCM Advanced heat transfer machine of thermal efficiency is much higher than domestic brands of equipment, and lower average energy consumption by more than 30%, imagine, If the energy consumption decreased from 0.80 yuan per square meter to 0.50 Yuan, then to 50,000 square meters per machine per month transfer, each machine can save electricity each year 180,000 yuan, five year electricity savings can be up to 900,000 yuan, far more than the price of a machine itself.
Because the operation is more convenient, each saves an operator, labor costs can be reduced by 50,000 Yuan or more a year.

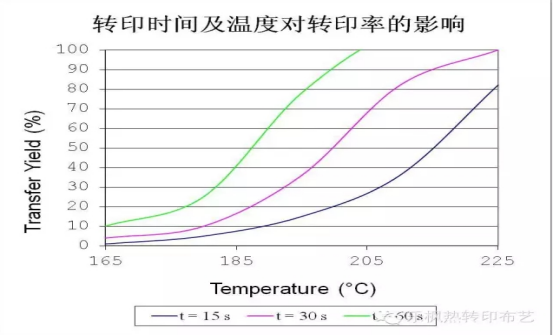

In addition, the imported high-end machine temperature constant printing quality even higher machine stability and life of up to 10 years, in short, for large business users,HCM printing machinery and high heat transfer machine but has a lower operating cost. Most core components of heat transfer machine is heating roller, transfer rate depends largely on the transfer time, temperature and pressure, the same transfer time and pressure, and temperature difference of one or two degrees, the transfer rate is very different.For precise temperature control, becomes the main indicator for measuring heat transfer machine, and that's all, are mainly on the structure of the heating roller.

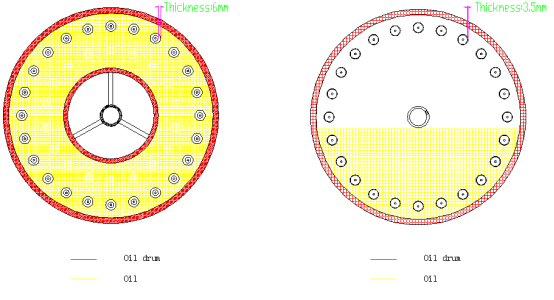

As shown in figure (4) as shown, some rollers are heating roller completely closed, the benefit of this is heat-conducting oil not added on a regular basis, but because of thermal expansion and contraction, it is impossible to make all full of heated rollers, the upper part is a vacuum, in theory, this part of the temperature be lower than other parts.HCM machinery is not although the need to regularly add oil (oil volatile rarely, so the maintenance cycle is very long), but the heated rollers are 100% oil-filled, so that not only the entire roller surface can maintain a good temperature, available surface also increased significantly.
(Figure 4) heating roller constructed two machines differ from heating roller heating method, heating wires in vacuum tubes, through infrared radiation to heat conduction oil; and HCM printing machinery is directly heated, so that preheating and shut down the cooling time of the machine as a whole, are greatly reduced, efficiency is higher.
(Figure 4)Different structure antipyretic roll of blanket with package proportion figure (5) by shows for two a brand cloth in heating roll up of package situation, can see, macro printing mechanical of package proportion far is greater than domestic other brand, cloth in heating roll up package area of proportion each improve 10%, also on means with its efficiency improve 10%, also roll diameter of hot turned printing machine, its turned printing speed also will improve 10%.
According to HCM machinery sales personnel, blanket package is up to 90% of its products over competing products only 60%--70%, which is Klieverik product efficiency and faster than the other products of the most important reasons.In addition, HCM machinery printing fabric and paper you can choose from any angle into the heated area, such as from figure (5) the direction of the arrow into, convenient operation, improve the quality of transfer, and other machinery, it is necessary to avoid the slightly lower temperature vacuum area. Believe that as people learn more for heat transfer machines, as well as large format printers, high-end energy-saving thermal transfer digital printing machine products, will be the inevitable choice for professional customers.
