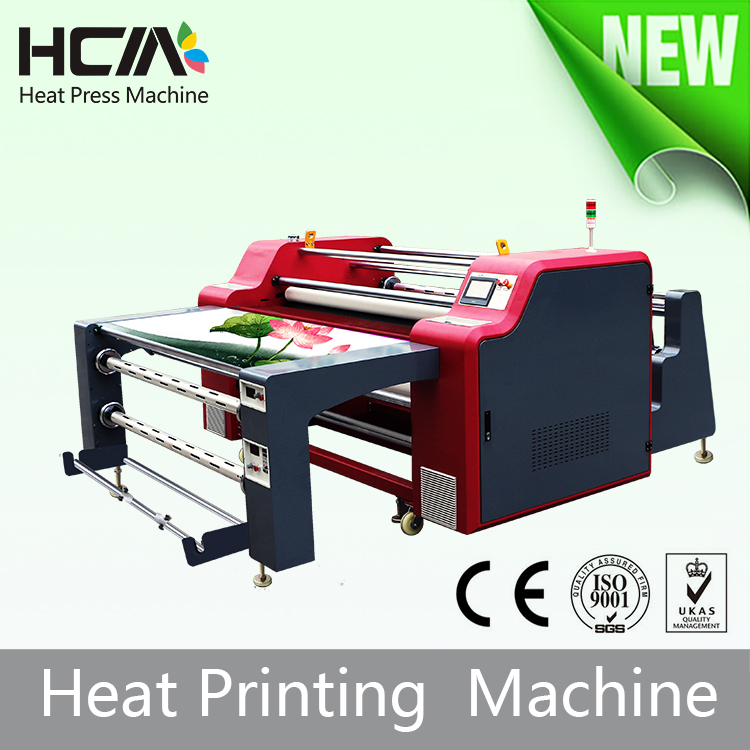

Products Detail2017 HCM NEW Type totary heat transfer machine
Parameter
Parameter of 2017 HCM NEW Type totary heat transfer machine
Model HCM-F3717 Diameter of oil drum 370 mm Transfer Width 1700 mm Voltage 3 pahase 220V/380V | Power 17 KW Printing speed 1.5- 2.5m/min Temp.Range 0-240℃ Machine size (L*W*H) 140''*109''*56'' |
Machine features
There are ten advantages of 2017 HCM NEW Type totary heat transfer machine as below:
Blanket automatic adjusting devices
Touch screen control panel,more precise of temperature
Printing width:1650-1700mm
Blanket cover at least 70% on drum.
Digital counting fabric winding device
Drum with 100% full conductive oil,even heating can effectively saving 30% electricity
Integrated collecting ring,more safety,maintenance-free
Magnetic particle controller control the tension of transfer paper
Device for automatic alarm and stop of breakdown.
Automatic control the tension if blanket

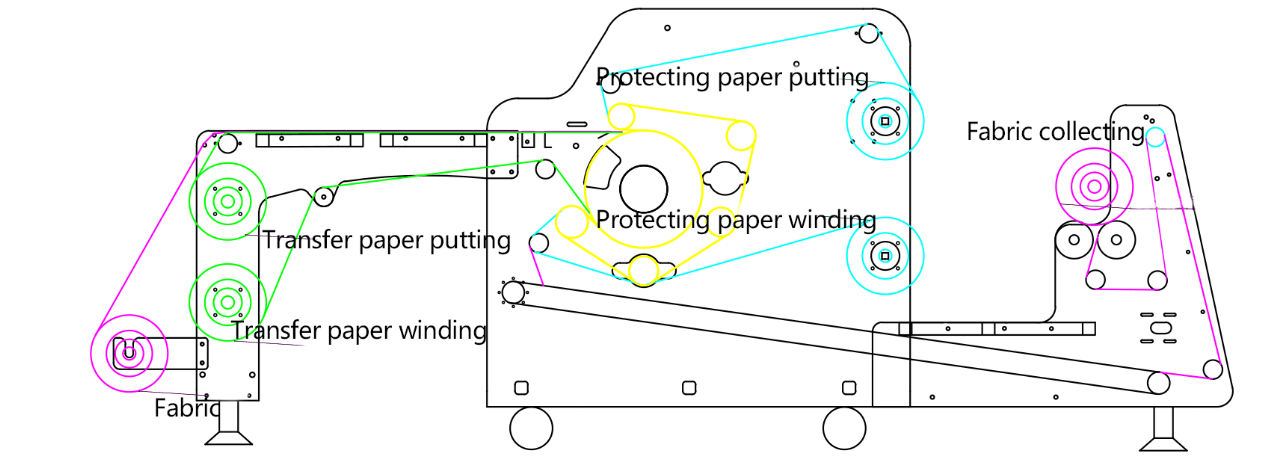

The principle diagram
It is clear to show customers of 2017 HCM NEW Type totary heat transfer machine how to use the our machine.Full automatic easy operation and labor saving.It is the first one full atomactic roll sublimation heat transfer machine in China.
Machine application field
2017 HCM NEW Type totary heat transfer machine can be used to both roll and piece fabric transfer,this type machine is mainly used to roll to roll fabric ,it is widely used to gament fatory ,cloth factory ,bedding article,ornament,Outdoor fabric products,office fabric supplies,the roll to T-shirt transfer,women dress,scarf,Evening dressing etc.
