Products DetailProduct paremeter

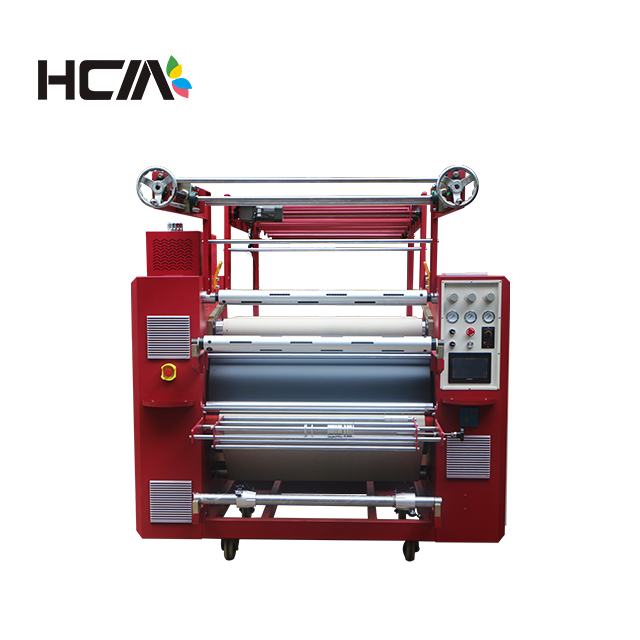

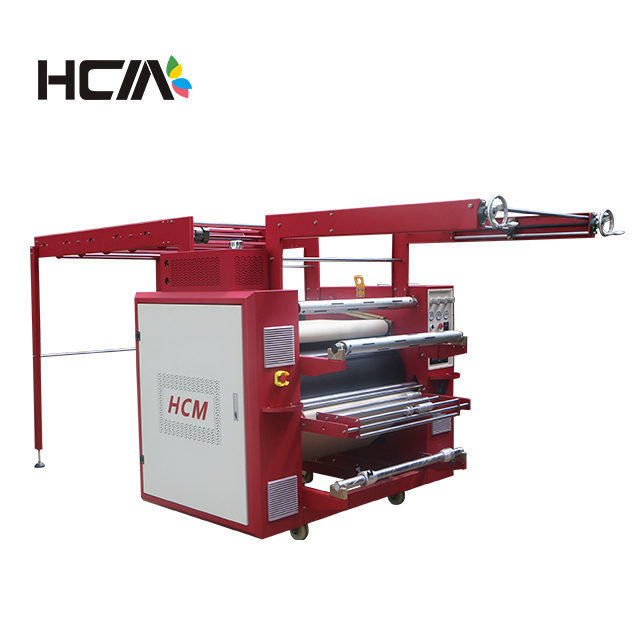

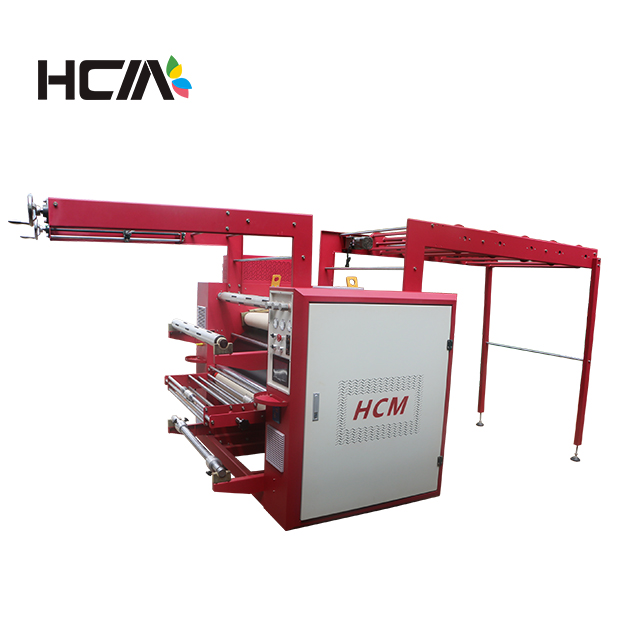

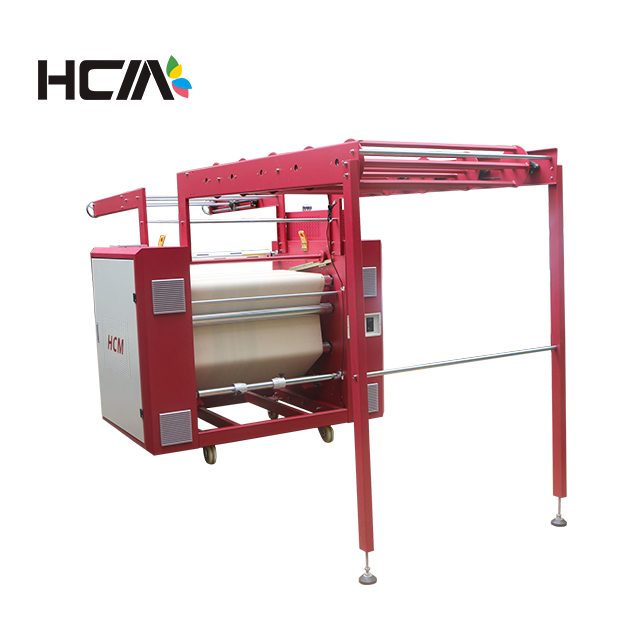

HCM Digital tubular sublimation ribbon heat transfer machine
Model HCM-R609 Diameter of oil drum 600 mm Width of diameter 1100 mm Voltage 220V/380V | Power 20.5KW Printing speed 1-8 m/min Temp.Range 0-240℃ Machine size (L*W*H) 3.9*1.84*1.89 m |
Product Feature
HCM Digital tubular sublimation ribbon roll heat transfer machine can print on double sides of ribbon at the same time with high speed
The ribbon is feed into the machine from the bottom side of the machine,which is convenient for operation ;the printed ribbon is collected at back of the machine with cooling device.
The main roller of this machine is precise vertical finishing processing,compared with the traditional horizontal finishing,it can reduce earth gravity,so that the roller is not easy to deformation and better keep level with the whole machine.Also with a long life time.And the roller is double-deck ,which is better for heating and the temperature is evener.
T
he oil drum adopt temperature cycling system which makes the surface temperature of the drum is even and precise .
HCM Digital tubular sublimation ribbon heat transfer machine with pneumatic extra pressure device,which can give extra pressure to blanket when printing thick fabrics
Application fields
Digital tubular sublimation ribbon heat transfer machine is mainly to print ribbon, belt, lanyard, elastic belt, zipper, shoes belt, pet belt,bundling belt, shoulder strap,etc.
